Part Number: UPD168101
Description: The PD168101 is monolithic quad H-bridge driver LSI which uses power MOSFETs in the output stages. By ...
- Table of contents:
UPD168101
-
Suppliers
DataSheet
General Description
UPD168101 General Description
The PD168101 is monolithic quad H-bridge driver LSI which uses power MOSFETs in the output stages. By using the MOS process, this driver IC has substantially improved the voltage loss of the output stage and power consumption as compared with conventional driver circuits using bipolar transistors.
By eliminating the charge pump circuit, the current during power-OFF is drastically decreased.
In addition, a low-voltage malfunction prevention circuit is also provided that prevents the IC from malfunctioning when the supply voltage drops.
As the package, a 24-pin plastic TSSOP is adopted to enable the creation of compact, slim application sets.
This driver IC can drive two stepping motor at the same time, and is ideal for driving stepping motors in the lens of a camera. It is the best for lens drive drivers, such as a digital camera and a video camera. Moreover, since the input of two terminals is respectively owned to H bridge 1 circuit, a maximum of four loads, such as DC motor, can be driven simultaneously.
UPD168101 Maximum Ratings
|
Parameter |
Symbol |
Conditions |
Rating |
Unit |
| Control block supply voltage |
VDD |
−0.5 to +6.0 |
V | |
| Control block supply voltage |
VM |
−0.5 to +6.0 |
V | |
| Input voltage |
VIN |
−0.5 to VDD + 0.5 |
V | |
| Output terminal voltage |
VOUT |
6.2 |
V | |
| Output current |
IM(DC) |
DC |
±0.35 |
A/ch |
| Output current |
IM(pulse) |
PW 10 ms, Duty 5% |
±0.7 |
A/ch |
| Power consumption |
PT |
0.7 |
W | |
| Peak junction temperature |
TCH(MAX) |
150 |
°C | |
| Storage temperature range |
Tstg |
-55 to +150 |
°C |
UPD168101 Features
`Four H bridge circuits employing power MOSFETs
`Low current consumption by eliminating charge pump
VM pin current when power-OFF: 10 A MAX. VDD pin current: 10 A MAX.
`Input logic frequency: 100 kHz
`3-V power supply
Minimum operating supply voltage: 2.5 V
`Low voltage malfunction prevention circuit
`24-pin plastic TSSOP (5.72 mm (225))
`Low current consumption by eliminating charge pump
VM pin current when power-OFF: 10 A MAX. VDD pin current: 10 A MAX.
`Input logic frequency: 100 kHz
`3-V power supply
Minimum operating supply voltage: 2.5 V
`Low voltage malfunction prevention circuit
`24-pin plastic TSSOP (5.72 mm (225))

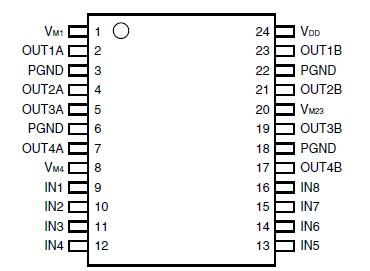

UPD168101 Connection Diagram
UPD168101
