Typical application circuit diagram TA8211AH audio power amplifier circuit

Published:2014/1/13 0:30:00 Author: | Keyword: Typical application circuit diagram TA8211AH audio power amplifier circuit, TA8211AH | From:SeekIC

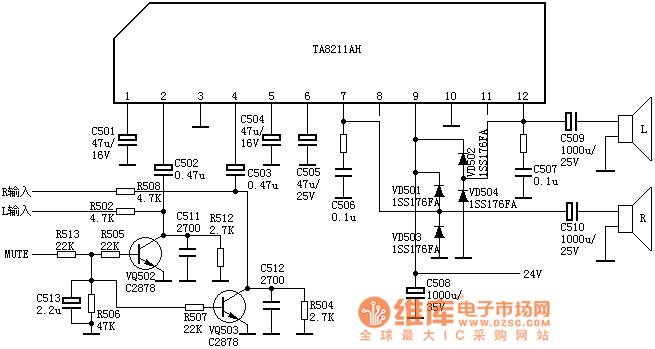

The circuit is taken from Changhong C2588-shaped TV Pin 1: 2.1V-- Left channel negative feedback external capacitor Pin 2: 2.2V-- left channel signal input Pin 3: 0V - ground Pin 4: 2.2V-- right channel signal input Pin 5: 2.1V-- Right channel negative feedback external capacitor Pin 6: 8.2V-- Power Filter Pin 7: 12V - right channel signal output Pin 8: 2.2V-- empty Pin 9: 24V - Power Pin 10: 2.2V-- empty Pin 11: 12V - left channel signal output Diagram TA8211AH typical audio amplifier circuit shown in Figure
