Purchase BA6144, In-stock BA6144 From SeekIC.
MFG:ROHM Package Cooled:SIP
- Table of contents:
BA6144
-
Suppliers
DataSheet
General Description
BA6144 Features
1) Rectifier amplifier allows either AC or DC input.
2) Wide display level range (-13 to +17), so signals with large dynamic range can be displayed.
3) Constant-current outputs for constant LED current when the power supply voltage fluctuates.
4) Built-in reference voltage means that power supply voltage fluctuations do not effect the display.
5) Wide operating power supply voltage range (5.5V to 16V) for a wide range of applications.
6) Low PCB space requirements. Comes in a compact 9-pin SIP package and requires few external components.
BA6144 Typical Application
VU meters, signal meters, and other display devices.

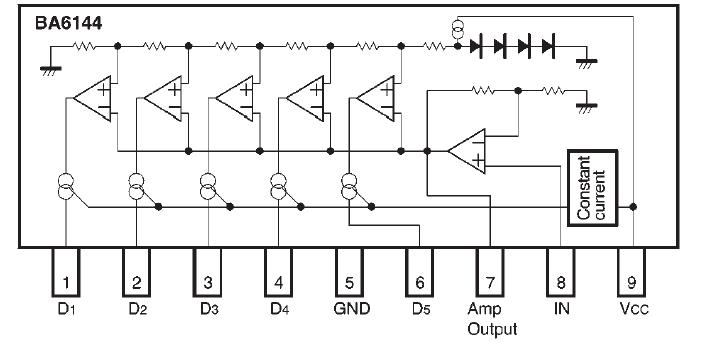

BA6144 Connection Diagram
BA6144
PDF/DataSheet Download
- Datasheet: BA6144
- File Size: 44598 KB
- Manufacturer: ROHM [Rohm]
- Click here to Download
