Part Number: FDB461
Description: The FDB461 is a high reliability EMI filter for use with Apex DB2800 series of DC-DC converters. This ...
- Table of contents:
FDB461
-
Suppliers
DataSheet
General Description
FDB461 General Description
The FDB461 is a high reliability EMI filter for use with Apex DB2800 series of DC-DC converters. This filter has been designed to reduce the input line reflected ripple current to =within the limit of MIL-STD-461C, CE03.
FDB461 hybrid EMI filters utilize all ceramic capacitors, surface mount magnetics and ultrasonically bonded aluminum wires to provide reliable operation at all operating temperatures while surviving very high G forces.
The 12-pin MO-127 High Profile DipTM package (see package outlines) allows connection to a heatsink and is hermetically sealed and isolated from the internal circuits. Heat sinking is recommended for full power operation at elevated ambient temperatures.
FDB461 Maximum Ratings
INPUT VOLTAGE RANGE ........................0-50Vdc
INPUT VOLTAGE TRANSIENT ...................50V @ 50s
TEMPERATURE RANGE, storage ................65 to 150°C
OPERATING TEMPERATURE, case ................ 25 to 85°C
INPUT VOLTAGE TRANSIENT ...................50V @ 50s
TEMPERATURE RANGE, storage ................65 to 150°C
OPERATING TEMPERATURE, case ................ 25 to 85°C
FDB461 Features
• 55º TO +125ºC OPERATION
• 50db MINIMUM DIFFERENTIAL MODE REJECTION AT 500 KHz
• 5.5 AMPS THROUGHPUT CURRENT
• MEETS MIL-STD-461C CEO3 STANDARDS FOR APEX DB2800
SERIES DC-DC CONVERTERS
• MIL-STD-704A THROUGH E POWER BUS COMPATIBILITY
• 50db MINIMUM DIFFERENTIAL MODE REJECTION AT 500 KHz
• 5.5 AMPS THROUGHPUT CURRENT
• MEETS MIL-STD-461C CEO3 STANDARDS FOR APEX DB2800
SERIES DC-DC CONVERTERS
• MIL-STD-704A THROUGH E POWER BUS COMPATIBILITY

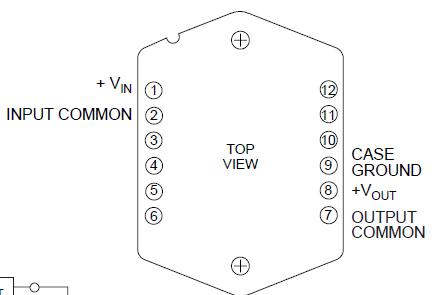

FDB461 Connection Diagram
