Part Number: GLT4160L04
Description: The GLT4160L04 is a high-performance CMOS dynamic random access memory containing 16,777,216 bits orga...
- Table of contents:
GLT4160L04
-
Suppliers
DataSheet
General Description
GLT4160L04 General Description
The GLT4160L04 is a high-performance CMOS dynamic random access memory containing 16,777,216 bits organized in a x4 configuration. The GLT4160L04 offers page cycle access with Extended Data Output. The GLT4160L04 has 11 row- and 11 column-addresses, and accepts 2048-cycle refresh in 32 ms.
The GLT4160L04 provides EDO PAGE MODE operation which allows for fast data access within a row-address defined boundary, up to 2048 x 4 bits with cycle times as short as 18ns.
GLT4160L04 Maximum Ratings
Operating Temperature, TA (ambient)
.....................................................0°C to
+70°C
For Extended Temperature...................-20°C to 85°C
Storage Temperature(plastic)...........-55°C to +150°C
Voltage Relative to VSS............................-0.5V to + 4.6V
Short Circuit Output Current..................................20mA
Power Dissipation...................................................1.0W
*Note: Operation above Absolute Maximum Ratings can aversely affect device reliability.
.....................................................0°C to
+70°C
For Extended Temperature...................-20°C to 85°C
Storage Temperature(plastic)...........-55°C to +150°C
Voltage Relative to VSS............................-0.5V to + 4.6V
Short Circuit Output Current..................................20mA
Power Dissipation...................................................1.0W
*Note: Operation above Absolute Maximum Ratings can aversely affect device reliability.
GLT4160L04 Features
· 4,194,304 words by 4 bits organization.
· Fast access time and cycle time
· Low power dissipation.
· Read-Modify-Write, RAS -Only Refresh, CAS -Before-RAS Refresh, Hidden Refresh.
· 2,048 refresh cycles per 32ms.
· Available in 300 mil 26(24) SOJ and TSOPII.
· 3.3V±0.3V Vcc Power Supply voltage.
· All inputs and Outputs are LVTTL compatible.
· Extended Data-Out (EDO) Page access cycle.
· Self-refresh Capability. (S-Version).
· Fast access time and cycle time
· Low power dissipation.
· Read-Modify-Write, RAS -Only Refresh, CAS -Before-RAS Refresh, Hidden Refresh.
· 2,048 refresh cycles per 32ms.
· Available in 300 mil 26(24) SOJ and TSOPII.
· 3.3V±0.3V Vcc Power Supply voltage.
· All inputs and Outputs are LVTTL compatible.
· Extended Data-Out (EDO) Page access cycle.
· Self-refresh Capability. (S-Version).

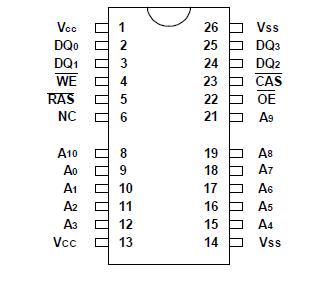

GLT4160L04 Connection Diagram
GLT4160L04E-40J3
