Purchase GLT44108, In-stock GLT44108 From SeekIC.
Part Number: GLT44108
Description: The GLT44108 is a 524,288 x 8 bit highperformance CMOS dynamic random access memory. The GLT44108 offe...
- Table of contents:
GLT44108
-
Suppliers
DataSheet
General Description
GLT44108 General Description
The GLT44108 is a 524,288 x 8 bit highperformance CMOS dynamic random access memory. The GLT44108 offers Fast Page mode with asymmetric address and accepts 512-cycle refresh in 8ms interval.
All inputs are TTL compatible. Fast Page Mode operation allows random access up to 512 x 8 bits within a page, with cycle times as short as 22ns.
The GLT44108 is best suited for graphics, digital signal processing and high performance peripherals.
GLT44108 Maximum Ratings
Operating Temperature, TA (ambient).........-10 to +80
Storage Temperature(plastic)....................-55 to +150
Voltage Relative to VSS..............................-1.0V to + 7.0V
Short Circuit Output Current.............................. .......50mA
Power Dissipation.......................................................1.0W
Storage Temperature(plastic)....................-55 to +150
Voltage Relative to VSS..............................-1.0V to + 7.0V
Short Circuit Output Current.............................. .......50mA
Power Dissipation.......................................................1.0W
GLT44108 Features
·524,288 words by 8 bits organization.
·Fast access time and cycle time.
·Low power dissipation.
Operating Current-150mA max.
TTL Standby Current-2mA max.
·Read-Modify-Write, RAS -Only Refresh,
CAS-Before-RAS Refresh,
Hidden Refresh and Test Mode Capability.
·1024 refresh cycles/16ms.
·Available in 28pin 400 mil SOJ
·Single +5.0V±10% Power Supply.
·All inputs and Outputs are TTLcompatible.
·Fast Page Mode supports sustained data rates up to 50MHZ.
·Fast access time and cycle time.
·Low power dissipation.
Operating Current-150mA max.
TTL Standby Current-2mA max.
·Read-Modify-Write, RAS -Only Refresh,
CAS-Before-RAS Refresh,
Hidden Refresh and Test Mode Capability.
·1024 refresh cycles/16ms.
·Available in 28pin 400 mil SOJ
·Single +5.0V±10% Power Supply.
·All inputs and Outputs are TTLcompatible.
·Fast Page Mode supports sustained data rates up to 50MHZ.

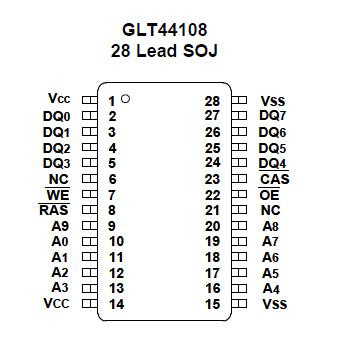

GLT44108 Connection Diagram
GLT44108
