HI1177

Features: • Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-Bit• Maximum Conversion Speed . . . . . . . . . . . . . . . . . 40MHz• YC 2-Channel Input/Output• Differential Linearity Error. . . . . . . . . . . . . . . . . ± 0.3 LSB• Low Po...

product image

HI1177 Picture
See larger image
SeekIC No. : 004362278 Detail

HI1177: Features: • Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-Bit• Maximum Conversion Speed . . . . . . . . . . . . . . . . . 40MHz• YC 2-Channel Input...

HI1177 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HI1177
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/1

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-Bit
• Maximum Conversion Speed . . . . . . . . . . . . . . . . . 40MHz
• YC 2-Channel Input/Output
• Differential Linearity Error. . . . . . . . . . . . . . . . . ± 0.3 LSB
• Low Power Consumption . . . . . . . . . . . . . . . . . . . .160mW
(200Ω Load for 2VP-P Output)
• Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . +5V Single
• Power-Down Mode
• Low Glitch Noise
• Direct Replacment for Sony CXD1177


Application

• I/Q Modulation
• YC Video
• Digital TV
• Wireless Transmitters


Pinout

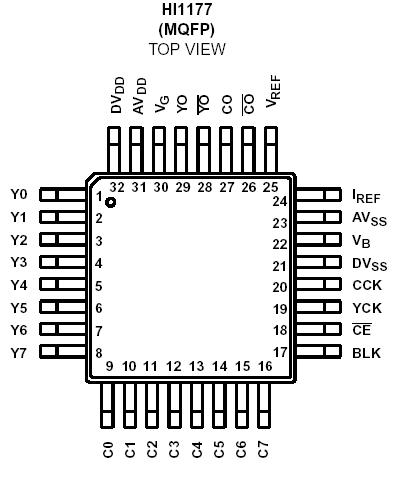

Connection Diagram


Specifications

Supply Voltage, VDD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..7V
Input Voltage, VIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . VDD to VSS
Output Current (For Each Channel), lOUT . . . . . . . . .  0mA to 15mA


Description

The HI1177 is a dual 8-bit CMOS digital-to-analog converter. It has input/output equivalent to 2 channels of Y and C for video use or I and Q for modulators.

The HI1177 is available in the industrial temperature range and is supplied in a 32 lead plastic metric quad flatpack (MQFP) package.
