Part Number: MX29LV017A
Description: The MX29LV017A is a 16-mega bit Flash memory organized as 2M bytes of 8 bits. MXIC's Flash memories of...
- Table of contents:
MX29LV017A
-
Suppliers
DataSheet
General Description
MX29LV017A General Description
The MX29LV017A is a 16-mega bit Flash memory organized as 2M bytes of 8 bits. MXIC's Flash memories offer the most cost-effective and reliable read/write nonvolatile random access memory. The MX29LV017A is packaged in 40-pin TSOP and 48-ball CSP. It is designed to be reprogrammed and erased in system or in standard EPROM programmers.
The standard MX29LV017A offers access time as fast as 70ns, allowing operation of high-speed microprocessors without wait states. To eliminate bus contention, the MX29LV017A has separate chip enable (CE) and output enable (OE) controls.
MXIC's Flash memories augment EPROM functionality with in-circuit electrical erasure and programming. The MX29LV017A uses a command register to manage this functionality. The command register allows for 100% TTL level control inputs and fixed power supply levels during erase and programming, while maintaining maximum EPROM compatibility.
MXIC Flash technology reliably stores memory contents even after 100,000 erase and program cycles. The MXIC cell is designed to optimize the erase and programming mechanisms. In addition, the combination of advanced tunnel oxide processing and low internal electric fields for erase and program operations produces reliable cycling.The MX29LV017A uses a 2.7V~3.6V VCC supply to perform the High Reliability Erase and auto Program/ Erase algorithms.
The highest degree of latch-up protection is achieved with MXIC's proprietary non-epi process. Latch-up protection is proved for stresses up to 100 milliamperes on address and data pin from -1V to VCC + 1V.
MX29LV017A Maximum Ratings
Storage Temperature
Plastic Packages . . . . . . . . . . . . . ..... -65 to +150
Ambient Temperature
with Power Applied. . . . . . . . . . . . . .. -65 to +125
Voltage with Respect to Ground
VCC (Note 1) . . . . . . . . . . . . .... . . . . -0.5 V to +4.0 V
A9, OE, and
RESET (Note 2) . . . . . . . . . . . ..........-0.5 V to +12.5 V
All other pins (Note 1) . . . . . ... . -0.5 V to VCC +0.5 V
Output Short Circuit Current (Note 3) . . .. . . . 200 mA
Notes:
1. Minimum DC voltage on input or I/O pins is -0.5 V. During voltage transitions, input or I/O pins may overshoot VSS to -2.0 V for periods of up to 20 ns. Maximum DC voltage on input or I/O pins is VCC +0.5 V. During voltage transitions, input or I/O pins may overshoot to VCC +2.0 V for periods up to 20 ns.
2. Minimum DC input voltage on pins A9, OE, and RESET is -0.5 V. During voltage transitions, A9, OE, and RESET may overshoot VSS to -2.0 V for periods of up to 20 ns. Maximum DC input voltage on pin A9 is +12.5 V which may overshoot to 14.0 V for periods up to 20 ns.
3. No more than one output may be shorted to ground at a time. Duration of the short circuit should not be greater than one second.
Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only; functional operation of the device at these or any other conditions above those indicated in the operational sections of this data sheet is not implied. Exposure of the device to absolute maximum rating conditions for extended periods may affect device reliability.
MX29LV017A Features
• Extended single- supply voltage range 2.7V to 3.6V
• 2,097,152 x 8
• Single power supply operation
- 3.0V only operation for read, erase and program operation
• Fast access time: 70/90ns
• Low power consumption
- 30mA maximum active current
- 0.2uA typical standby current
• Command register architecture
- Byte Programming (9us typical)
- Sector Erase (Sector structure 64K-Byte x32)
• Auto Erase (chip & sector) and Auto Program
- Automatically erase any combination of sectors with Erase Suspend capability.
- Automatically program and verify data at specified address
• Erase suspend/Erase Resume
- Suspends sector erase operation to read data from,or program data to, any sector that is not being erased,then resumes the erase.
• Status Reply
- Data polling & Toggle bit for detection of program and erase operation completion.
• Ready/Busy pin (RY/BY)
- Provides a hardware method of detecting program or erase operation completion.
• Sector protection
- Hardware method to disable any combination of sectors from program or erase operations
- Temporary sector unprotect allows code changes in previously locked sectors.
• CFI (Common Flash Interface) compliant
- Flash device parameters stored on the device and provide the host system to access
• 100,000 minimum erase/program cycles
• Latch-up protected to 100mA from -1V to VCC+1V
• Low VCC write inhibit is equal to or less than 1.4V
• Package type:
- 40-pin TSOP
- 48-ball CSP
• Compatibility with JEDEC standard
- Pinout and software compatible with single-power supply Flash
• 2,097,152 x 8
• Single power supply operation
- 3.0V only operation for read, erase and program operation
• Fast access time: 70/90ns
• Low power consumption
- 30mA maximum active current
- 0.2uA typical standby current
• Command register architecture
- Byte Programming (9us typical)
- Sector Erase (Sector structure 64K-Byte x32)
• Auto Erase (chip & sector) and Auto Program
- Automatically erase any combination of sectors with Erase Suspend capability.
- Automatically program and verify data at specified address
• Erase suspend/Erase Resume
- Suspends sector erase operation to read data from,or program data to, any sector that is not being erased,then resumes the erase.
• Status Reply
- Data polling & Toggle bit for detection of program and erase operation completion.
• Ready/Busy pin (RY/BY)
- Provides a hardware method of detecting program or erase operation completion.
• Sector protection
- Hardware method to disable any combination of sectors from program or erase operations
- Temporary sector unprotect allows code changes in previously locked sectors.
• CFI (Common Flash Interface) compliant
- Flash device parameters stored on the device and provide the host system to access
• 100,000 minimum erase/program cycles
• Latch-up protected to 100mA from -1V to VCC+1V
• Low VCC write inhibit is equal to or less than 1.4V
• Package type:
- 40-pin TSOP
- 48-ball CSP
• Compatibility with JEDEC standard
- Pinout and software compatible with single-power supply Flash

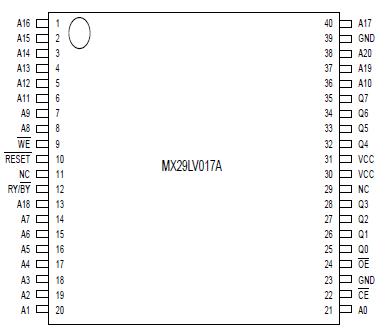

MX29LV017A Connection Diagram
MX29LV017AXBC-70
PDF/DataSheet Download
- Datasheet: MX29LV017AXBC-70
- File Size: 655642 KB
- Manufacturer: ETC [ETC]
- Click here to Download
- ·MX205Q
- ETC [ETC]
- Low Cost, 5.0g, Dual Axis Accelerometer with Analog Outputs
- 252911 KB
- ·MX205QC
- ETC [ETC]
- Low Cost, 5.0g, Dual Axis Accelerometer with Analog Outputs
- 252911 KB
- ·MX205QL
- ETC [ETC]
- Low Cost, 5.0g, Dual Axis Accelerometer with Analog Outputs
- 252911 KB
- ·MX210Q
- ETC [ETC]
- Low Cost, 10g, Dual Axis Accelerometer with Analog Outputs
- 252922 KB
- ·MX210QC
- ETC [ETC]
- Low Cost, 10g, Dual Axis Accelerometer with Analog Outputs
- 252922 KB
- ·MX210QL
- ETC [ETC]
- Low Cost, 10g, Dual Axis Accelerometer with Analog Outputs
- 252922 KB
- ·MX214
- CMLMICRO [CML Microcircuits]
- Variable Split Band Inverter
- 238010 KB
- ·MX23C1010
- MCNIX [Macronix International]
- 1M-BIT MASK ROM (8 BIT OUTPUT)
- 119262 KB
