SAA2500

Features: · Advanced error protection· Integrated audio post processing for control of signal level and inter-channel crosstalk· Demultiplexing of ancillary data in the input bitstream· Automatic digital de-emphasis of the decoded audio signal· Separate master and slave inputs· Automatic sample fr...

product image

SAA2500 Picture
See larger image
SeekIC No. : 004483885 Detail

SAA2500: Features: · Advanced error protection· Integrated audio post processing for control of signal level and inter-channel crosstalk· Demultiplexing of ancillary data in the input bitstream· Automatic di...

SAA2500 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA2500
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Advanced error protection
· Integrated audio post processing for control of signal level and inter-channel crosstalk
· Demultiplexing of ancillary data in the input bitstream
· Automatic digital de-emphasis of the decoded audio signal
· Separate master and slave inputs
· Automatic sample frequency and bit-rate switching in master input mode
· Automatic synchronization of input and output interface clocks in master input mode
· Selectable audio output precision; 16, 18, 20 or 22 bit
· Low power consumption.


Application

· Cable and satellite digital radio decoders
· Video CD
· Compact Disc Interactive (CD-I)
· Sold-state audio
· Multimedia Personal Computer (PC).


Pinout

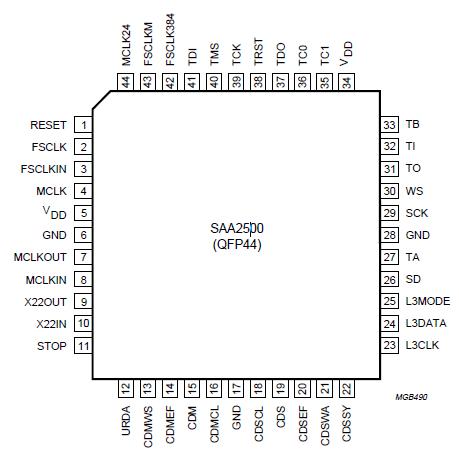

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDD supply voltage   -0.5 +6.5 V
Vi input voltage note 1 -0.5 VDD + 0.5 V
IDD supply current   - 100 mA
II input current   - 10 mA
IO output current 2 mA outputs - 10 mA
4 mA outputs - 20 mA
Ptot total power dissipation VDD = 5 V±5% - 165 mW
Tstg storage temperature   -65 +150 °C
Tamb operating ambient temperature   -40 +85 °C
Ves1 electrostatic handling note 2 -2000 +2000 V
Ves2 electrostatic handling note 3 -200 +200 V

Notes
1. Input voltage should not exceed 6.5 V unless otherwise specified.
2. Equivalent to discharging a 100 pF capacitor through a 1.5 k series resistor.
3. Equivalent to discharging a 200 pF capacitor through a 0 series resistor.


Description

The SAA2500 supports all audio modes (joint stereo, stereo, single channel and dual channel) bit rates and sample frequencies of ISO/MPEG-1 layers I and II, as standardized in "ISO/IEC 11172-3".
