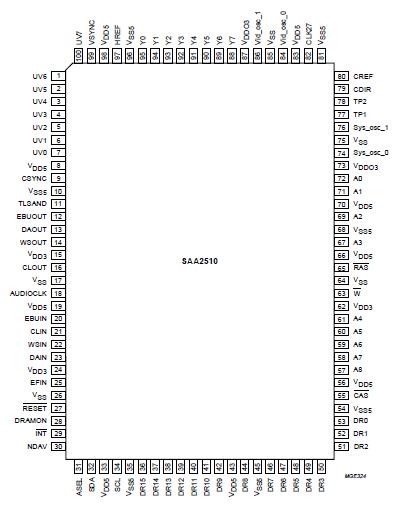

SAA2510

(With standard microcode loaded)

` Decoding and display of MPEG1 video streams (constrained parameters)
` Decoding of MPEG audio streams (layer II)
` Decoding, storage (compressed) and display of high-resolution still pictures of 704 ´ 576 pixels
` Requires only 4 Mbits of external 70 ns DRAM
` Audio transparency mode for CD-DA discs
` On-screen display capability
` Play options:
   Play
   Stop
   Pause/continue
   Slow-motion forward
   Scan forward
   Scan backward.
` Supports auto-pause feature
` Disc interface: Philips I<sup>2</sup>S, EIAJ, MEC formats and IEC 958 (EBU) interface
` Separate error flag input (EFIN) and data valid input (NDAV)
` Performs basic block decoder functions:
   serial-to-parallel conversion
   sync detection
   descrambling
   EDC calculation
   error-correction for mode 2 form 1 sectors
   header and sub-header interpretation.
` I²C-bus interface
` Video output YUV 4 : 2 : 2 format. DMSD bus compatible
` Also supports CCIR656 video interface, including line and field timing codes
` Audio output: 44.1 kHz. 16, 18 or 20 bits per audio sample in Philips I2S, Sony or MEC formats
` EBU audio output, fully transparent from input to output in CD-DA mode and generated in MPEG mode
` Downloadable microcode for internal controllers
` Internal video timing generator
` Requires 40 MHz crystal for system clock generation
` Requires 27 MHz crystal or external 27 MHz source for video timing generation
` Requires 16.9344 MHz (384 * 44.1 kHz) clock locked to CD drive
` Internal generation of 90 kHz MPEG clock
` Capability of sharing external DRAM by 3-stating all DRAM pins.

MPEG1 audio and video CD (VCD) decoder, intended for use in low-cost dedicated video CD players. When used with a 4 Mbit DRAM and a digital video encoder, the decoder adds the required functionality to a CD decoder to implement a low-cost video CD player capable of playing discs coded to version 2.0 of the video CD specification. The SAA2510 is an I2C-bus controlled chip and features serial data input in four common bus formats. SAA2510 provides digital video output in CCIR601 and 656 formats.

A bit-mapped on-screen display is provided and output video timing can be 525 lines/30 frames per second or 625 lines/25 frames per second. The SAA2510 is microcode programmable for feature enhancement.
