Features: Conforms to POCSAG standard for pagers512, 1200 or 2400 bps signal speedMultiframe compatible (each address individually controllable)8 addresses *4 sub-addresses (total of 32 addresses) control (8 addresses comprise 7 actual addresses + 1 dummy address)Built-in buffer memory (1 code wor...
SM8213AM: Features: Conforms to POCSAG standard for pagers512, 1200 or 2400 bps signal speedMultiframe compatible (each address individually controllable)8 addresses *4 sub-addresses (total of 32 addresses) c...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Conforms to POCSAG standard for pagers
512, 1200 or 2400 bps signal speed
Multiframe compatible (each address individually controllable)
8 addresses *4 sub-addresses (total of 32 addresses) control (8 addresses comprise 7 actual addresses + 1 dummy address)
Built-in buffer memory (1 code word)
Supports tone, numeric or character call messages Built-in input signal filter, with filter ON/OFF and 4 selectable filter characteristics
PLL-compatible battery saving method (BS1, BS2, BS3 outputs)
BS1 (RF control main output signal) 61-step setup time setting
BS3 (PLL setup signal) 61-step setup time setting
BS2 (RF DC-level adjustment signal) before/during reception selectable adjustment timing
1-bit and 2-bit burst error auto-correction function
25 to 75% duty factor signal coverage
8 rate error detection condition settings
76.8 kHz system clock (crystal oscillator)
76.8 or 38.4 kHz clock output pin
Built-in oscillator capacitor and feedback resistor
2.0 to 3.5 V operating supply voltage
Molybdenum-gate CMOS process realizes low power dissipation
16-pin SSOP
Parameter | Symbol | Condition | Rating | Unit |
Supply voltage range | VDD | -0.3 to 7.0 | V | |
Input voltage range | VIN | VSS-0.3 to VDD + 0.3 | V | |
Power dissipation | PD | 250 | mW | |
Storage temperature range | Tstg | -40 to 125 | °C | |
Soldering temperature | Tsld | 255 | °C | |
Soldering time | tsld | 10 | s |

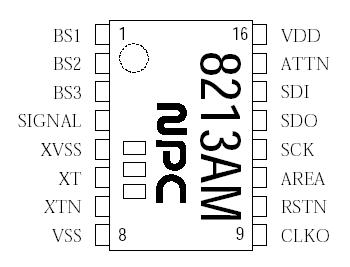

The SM8213AM is a POCSAG-standard (Post Office Code Standardization Advisory Group) signal processor LSI, which conforms to CCIR recommendation 584 concerning standard international wireless calling codes.
The SM8213AM supports call messages in either tone, numerical or character outputs at signal speeds of 512, 1200 or 2400 bps. The signal input stage features a built-in filter.
Each of the addresses (max. 7 + 1 dummy = 8) can be assigned to any frame, which also makes SM8213AM configurable for many additional services. Each address can be independently set to ON/OFF.Furthermore, built-in buffer memory means decoded information can be fetched in sync with the microcontroller clock, thereby reducing the microcontroller CPU time required. Intermittent-duty method (battery saving (BS) method) control signals, compatible with PLL operation, and Molybdenum-gate CMOS structure makes possible the construction of low-voltage operation, low power dissipation systems.
The SM8213AM is available in 16-pin SSOPs.
