SPT9713

• 12-Bit, 100 MWPS digital-to-analog converter
• TTL compatibility
• Low power: 640 mW
• 1/2 LSB DNL
• 40 MHz multiplying bandwidth
• Industrial temperature range
• Superior performance over AD9713Improved settling time of 13 nsImproved glitch energy 15 pV-sMaster-slave latches

Supply Voltages
Positive Supply Voltage (V_CC) ................................ +7 V
Negative Supply Voltage (V_EE) .............................. 7 V
A/D Ground Voltage Differential ........................... 0.5 V
Input Voltages
Digital Input Voltage
(D1D12, Latch Enable) ............................... 0 V to VCC
Control Amp Input Voltage Range ............... 0 V to 4 V
Reference Input Voltage Range (V_REF) ........ 0 V to V_EE
Output Currents
Internal Reference Output Current .................... 500 µA
Control Amplifier Output Current .....................±2.5 mA
Temperature
Operating Temperature .......................... 40 to +85 °C
Junction Temperature ...................................... +150 °C
Lead, Soldering (10 seconds) ......................... +300 °C
Storage ................................................ 65 to +150 °C

The SPT9713 is a 12-bit, 100 MWPS digital-to-analog converter designed for direct digital synthesis,high reso-lution imaging,and arbitrary waveform generation applica-tions.

This device is pin-for-pin compatible with the AD9713 withsignificantly improved performance. The only differencebetween the SPT9713 and the AD9713 is that the LatchEnable (LE, pin 26) for the SPT9713 is rising-edge trig-gered (see figure 1), whereas the Latch Enable (LE, pin26) for the AD9713 functions in the transparent mode.

The SPT9713 is a TTL-compatible device. It features afast settling time of 13 ns and low glitch impulse energy of15 pV-s, which results in excellent spurious-free dynamicrange characteristics.

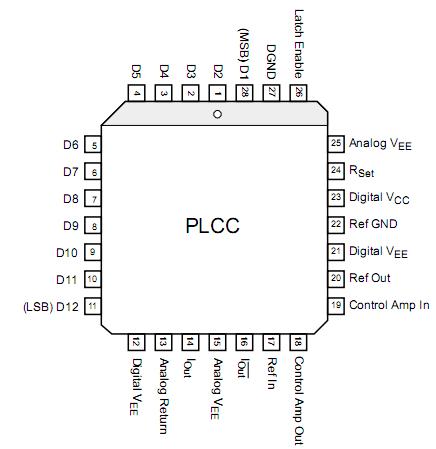

The SPT9713 is available in a 28-lead PLCC package in the industrial temperature range (40 to +85 °C).
