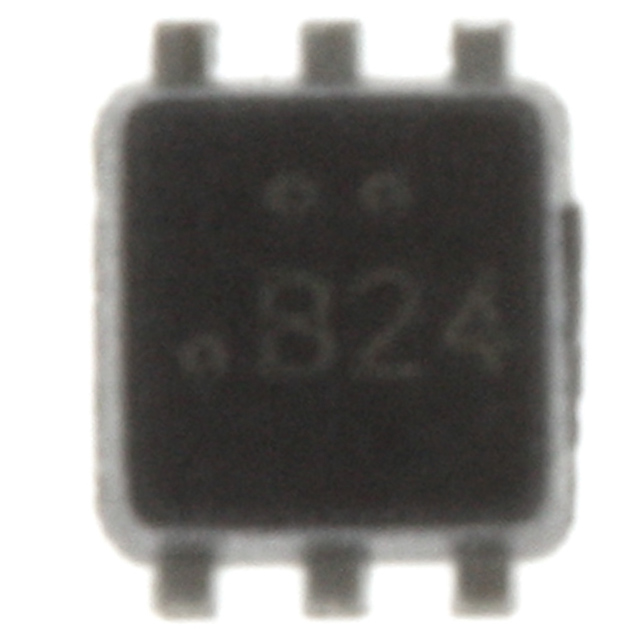

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:SOT-463 D/C:05+nopb
FDJ1028N, FDJ127P, FDJ128N Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor (VA)
Package Cooled: SOT-463
D/C: 05+nopb
Description: MOSFET N-CHAN 20V 5.5A SC75-6
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FDJ1028N
File Size: 552804 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDJ127P
File Size: 176146 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FDJ128N
File Size: 178845 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
| Technical/Catalog Information | FDJ1028N |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | 2 N-Channel (Dual) |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25° C | 3.2A |
| Rds On (Max) @ Id, Vgs | 90 mOhm @ 3.2A, 4.5V |
| Input Capacitance (Ciss) @ Vds | 200pF @ 10V |
| Power - Max | 1.5W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 3nC @ 4.5V |
| Package / Case | SC-75-6 |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDJ1028N FDJ1028N |
This dual N-Channel 2.5V specified MOSFET uses Fairchild's advanced low voltage PowerTrench process. Packaged in FLMP SC75, the RDS(ON)and thermal properties of the device are optimized for battery power management applications.
|
Symbol |
Parameter |
Ratings |
Units |
|
VDSS |
Drain-Source Voltage |
20 |
V |
|
VGSS |
Gate-Source Voltage |
±12 |
V |
|
ID |
Drain Current Continuous (Note 1a) Pulsed |
3.2 |
A |
|
12 | |||
|
PD |
Power Dissipation for single Operation (Note 1a) |
1.5 |
W |
|
TJ,TSTG |
Operating and Storage Junction Temperature Range |
55 to+150 |
°C |
| Thermal Characteristics | |||
|
RJA |
Thermal Resistance, Junction-to-Ambient (Note 1a) |
80 |
°C/W |
|
RJC |
Thermal Resistance, Junction-to-Case |
5 | |
| Technical/Catalog Information | FDJ127P |
| Vendor | Fairchild Semiconductor |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | P-Channel |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25° C | 4.1A |
| Rds On (Max) @ Id, Vgs | 60 mOhm @ 4.1A, 4.5V |
| Input Capacitance (Ciss) @ Vds | 780pF @ 10V |
| Power - Max | 1.6W |
| Packaging | Tape & Reel (TR) |
| Gate Charge (Qg) @ Vgs | 10nC @ 4.5V |
| Package / Case | SC-75-6 |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDJ127P FDJ127P |
|
Symbol |
Parameter |
Ratings |
Units |
|
VDSS |
Drain-Source Voltage |
-20 |
V |
|
VGSS |
Gate-Source Voltage |
± 8 |
V |
|
ID |
Drain Current Continuous (Note 1a) Pulsed |
4.1 |
A |
|
-16 | |||
|
PD |
Power Dissipation (Note 1) |
1.6 |
W |
|
TJ,TSTG |
Operating and Storage Junction Temperature Range |
55to+150 |
°C |
| Technical/Catalog Information | FDJ128N |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Mounting Type | Surface Mount |
| FET Polarity | N-Channel |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25° C | 5.5A |
| Rds On (Max) @ Id, Vgs | 35 mOhm @ 5.5A, 4.5V |
| Input Capacitance (Ciss) @ Vds | 543pF @ 10V |
| Power - Max | 1.6W |
| Packaging | Digi-Reel? |
| Gate Charge (Qg) @ Vgs | 8nC @ 5V |
| Package / Case | SC-75-6 |
| FET Feature | Logic Level Gate |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FDJ128N FDJ128N FDJ128NDKR ND FDJ128NDKRND FDJ128NDKR |
|
Symbol |
Parameter |
Ratings |
Units |
|
VDSS |
Drain-Source Voltage |
20 |
V |
|
VGSS |
Gate-Source Voltage |
± 12 |
V |
|
ID |
Drain Current Continuous (Note 1a) Pulsed |
5.5 |
A |
|
16 | |||
|
PD |
Power Dissipation for Single Operation (Note 1a) |
1.6 |
W |
|
TJ,TSTG |
Operating and Storage Junction Temperature Range |
55to+150 |
°C |
• 5.5 A, 20 V. RDS(ON) = 35 m @ VGS = 4.5 V
RDS(ON) = 51 m @ VGS = 2.5 V
• Low gate charge
• High performance trench technology for extremely low RDS(ON)
• Compact industry standard SC75-6 surface mount package
