NDB4050, NDB4050L, NDB4060

Table of contents:
Info of NDB4050
Info of NDB4050L
Info of NDB4060

NDB4050, NDB4050L, NDB4060 Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:TO-263 D/C:96+

NDB4050, NDB4050L, NDB4060 Datasheet download

Five Points

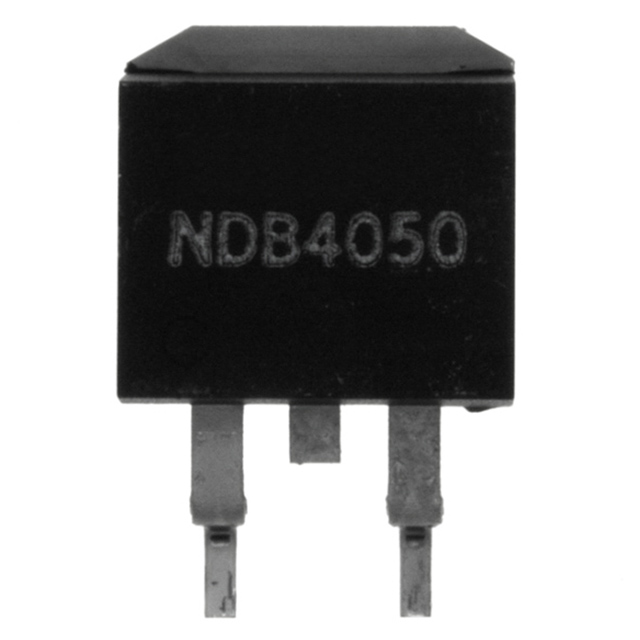

Part Number: NDB4050

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: TO-263

D/C: 96+

Description: MOSFET N-CH 60V 15A D2PAK

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

NDB4050 Parameters

Technical/Catalog Information	NDB4050
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	50V
Current - Continuous Drain (Id) @ 25° C	15A
Rds On (Max) @ Id, Vgs	100 mOhm @ 7.5A, 10V
Input Capacitance (Ciss) @ Vds	450pF @ 25V
Power - Max	50W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	17nC @ 10V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Standard
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	NDB4050 NDB4050 NDB4050CT ND NDB4050CTND NDB4050CT

NDB4050 General Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulses in the avalanche and commutation modes. These devices are particularly suited for low voltage applications such as automotive, DC/DC converters, PWM motor controls, and other battery powered circuits where fast switching, low in-line power loss, and resistance to transients are needed.

NDB4050 Maximum Ratings

Symbol	Parameter	NDP4050	NDB4050	Units
V_DSS	Drain-Source Voltage	50		V
V_DGR	Drain-Gate Voltage (R_GS < 1 MW)	50		V
V_GSS	Gate-Source Voltage - Continuous - Nonrepetitive (t_P 50 µs)	± 20		V
		± 40
I_D	Drain Current - Continuous - Pulsed	± 15		A
		± 45
P_D	Total Power Dissipation Derate above 25°C	50		W
		0.33		W/
T_J,T_STG	Operating and Storage Temperature Range	-65 to 175
T_L	Maximum lead temperature for soldering purposes,1/8" from case for 5 seconds	275

NDB4050 Features

`15A, 50V. R_DS(ON) = 0.10 @ V_GS=10V.
`Critical DC electrical parameters specified at elevated temperature.
`Rugged internal source-drain diode can eliminate the need for an external Zener diode transient suppressor.
`175°C maximum junction temperature rating.
`High density cell design for extremely low R_DS(ON).
`TO-220 and TO-263 (D²PAK) package for both through hole and surface mount applications.

NDB4050L Parameters

Technical/Catalog Information	NDB4050L
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	50V
Current - Continuous Drain (Id) @ 25° C	15A
Rds On (Max) @ Id, Vgs	80 mOhm @ 15A, 10V
Input Capacitance (Ciss) @ Vds	600pF @ 25V
Power - Max	50W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	17nC @ 5V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	NDB4050L NDB4050L NDB4050LCT ND NDB4050LCTND NDB4050LCT

NDB4050L General Description

These logic level N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulses in the avalanche and commutation modes. These devices are particularly suited for low voltage applications such as automotive, DC/DC converters, PWM motor controls, and other battery powered circuits where fast switching, low in-line power loss, and resistance to transients are needed.

NDB4050L Maximum Ratings

Symbol	Parameter	NDP4050L	NDB4050L	Units
V_DSS	Drain-Source Voltage	50		V
V_DGR	Drain-Gate Voltage (R_GS 1 M)	50		V
V_GSS	Gate-Source Voltage - Continuous - Nonrepetitive (t_P < 50 µs)	± 16		V
		± 25
I_D	Drain Current - Continuous - Pulsed	15		A
		45
P_D	Total Power Dissipation @ T_C = 25°C Derate above 25°C	50		W
		0.33		W/
T_J,T_STG	Operating and Storage Temperature Range	-65 to 175
T_L	Maximum lead temperature for soldering purposes, 1/8" from case for 5 seconds	275

NDB4050L Features

·15A, 50V. R_DS(ON) = 0.1W @ V_GS = 5V
·Low drive requirements allowing operation directly from logic drivers. V_GS(TH) < 2.0V.
·Critical DC electrical parameters specified at elevated temperature.
·Rugged internal source-drain diode can eliminate the need for an external Zener diode transient suppressor.
·175°C maximum junction temperature rating.
·High density cell design for extremely low R_DS(ON).
·TO-220 and TO-263 (D²PAK) package for both through hole and surface mount applications.

NDB4060 Parameters

Technical/Catalog Information	NDB4060
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	15A
Rds On (Max) @ Id, Vgs	100 mOhm @ 7.5A, 10V
Input Capacitance (Ciss) @ Vds	450pF @ 25V
Power - Max	50W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	17nC @ 10V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Standard
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	NDB4060 NDB4060 NDB4060CT ND NDB4060CTND NDB4060CT

NDB4060 General Description

NDB4060 Maximum Ratings

Symbol	Parameter	NDP4050	NDB4050	Units
V_DSS	Drain-Source Voltage	60		V
V_DGR	Drain-Gate Voltage (R_GS 1 MW)	60		V
V_GSS	Gate-Source Voltage - Continuous - Nonrepetitive (t_P < 50 µs)	± 20		V
		± 40
I_D	Drain Current - Continuous - Pulsed	± 15		A
		± 45
P_D	Total Power Dissipation Derate above 25°C	50		W
		0.33		W/
T_J,T_STG	Operating and Storage Temperature Range	-65 to 175
T_L	Maximum lead temperature for soldering purposes,1/8" from case for 5 seconds	275

NDB4060 Features
