NDB7060, NDB7060L, NDB7060L-NL

Table of contents:
Info of NDB7060
Info of NDB7060L
Info of NDB7060L-NL

NDB7060, NDB7060L, NDB7060L-NL Selling Leads, Datasheet

MFG:Fairchild Semiconductor (VA) Category:Discrete Semiconductor Products Package Cooled:TO-263 D/C:05+

NDB7060, NDB7060L, NDB7060L-NL Datasheet download

Five Points

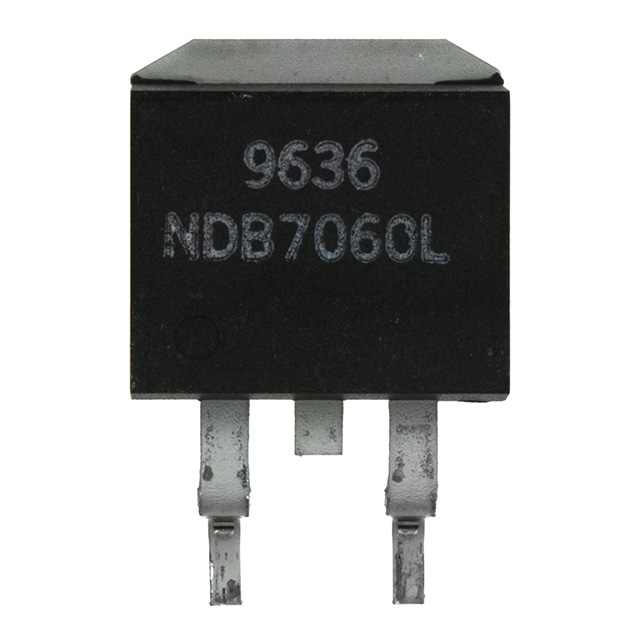

Part Number: NDB7060L

Category: Discrete Semiconductor Products

MFG: Fairchild Semiconductor (VA)

Package Cooled: TO-263

D/C: 05+

Description: MOSFET N-CH 60V 75A D2PAK

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

NDB7060 Parameters

Technical/Catalog Information	NDB7060
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	75A
Rds On (Max) @ Id, Vgs	13 mOhm @ 40A, 10V
Input Capacitance (Ciss) @ Vds	3600pF @ 25V
Power - Max	150W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	115nC @ 10V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Standard
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	NDB7060 NDB7060 NDB7060CT ND NDB7060CTND NDB7060CT

NDB7060 General Description

These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process is especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulses in the avalanche and commutation modes. These devices are particularly suited for low voltage applications such as automotive, DC/DC converters, PWM motor controls, and other battery powered circuits where fast switching, low in-line power loss, and resistance to transients are needed.

NDB7060 Maximum Ratings

Symbol	Parameter	NDP7060	NDB7060	Units
V_DSS	Drain-Source Voltage	60		V
V_DGR	Drain-Gate Voltage (R_GS 1 M)	60		V
V^_DSS	Gate-Source Voltage - Continuous - Nonrepetitive (t_P < 50 s)	± 20		V
		± 40
I_D	Drain Current - Continuous - Pulsed	75		A
		225
P_D	Total Power Dissipation @ T_C = 25°C Derate above 25°C	150		W
		1		W/
T_J,T_STG	Operating and Storage Temperature	-65 to 175
T_L	Maximum lead temperature for soldering purposes, 1/8" from case for 5 seconds	275

NDB7060 Features

`75A, 60V. R_DS(ON) = 0.013 @ V_GS=10V.
`Critical DC electrical parameters specified at elevated temperature.
`Rugged internal source-drain diode can eliminate the need for an external Zener diode transient suppressor.
`175°C maximum junction temperature rating.
`High density cell design for extremely low R_DS(ON).
`TO-220 and TO-263 (D²PAK) package for both through hole and surface mount applications.

NDB7060L Parameters

Technical/Catalog Information	NDB7060L
Vendor	Fairchild Semiconductor (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	N-Channel
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25° C	75A
Rds On (Max) @ Id, Vgs	15 mOhm @ 37.5A, 5V
Input Capacitance (Ciss) @ Vds	4000pF @ 25V
Power - Max	150W
Packaging	Cut Tape (CT)
Gate Charge (Qg) @ Vgs	115nC @ 5V
Package / Case	D²Pak, SMD-220, TO-263 (2 leads + tab)
FET Feature	Logic Level Gate
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	NDB7060L NDB7060L NDB7060LCT ND NDB7060LCTND NDB7060LCT

NDB7060L General Description

These logic level N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulses in the avalanche and commutation modes. These devices are particularly suited for low voltage applications such as automotive, DC/DC converters, PWM motor controls, and other battery powered circuits where fast switching, low in-line power loss, and resistance to transients are needed.

NDB7060L Maximum Ratings

Symbol	Parameter	NDP7060L	NDB7060L	Units
V_DSS	Drain-Source Voltage	60		V
V_DGR	Drain-Gate Voltage (R_GS 1 M)	60		V
V_GSS	Gate-Source Voltage - Continuous - Nonrepetitive (t_P < 50 µs)	± 20		V
		± 40
I_D	Drain Current - Continuous - Pulsed	75		A
		225
P_D	Total Power Dissipation @ T_C = 25°C Derate above 25°C	150		W
		1		W/
T_J,T_STG	Operating and Storage Temperature Range	-65 to 175

NDB7060L Features

`75A, 60V. R_DS(ON) = 0.015 @ V_GS = 5V
`Low drive requirements allowing operation directly from logic drivers. V_GS(TH) < 2.0V.
`Critical DC electrical parameters specified at elevated temperature.
`Rugged internal source-drain diode can eliminate the need for an external Zener diode transient suppressor.
`175°C maximum junction temperature rating.
`High density cell design for extremely low R_DS(ON).
`TO-220 and TO-263 (D²PAK) package for both through hole and surface mount applications.
